High Speed Vinyl Doors (TNR)
✦ Polyester Woven Material. Flexible and resistant to abusive environments and impacts.
✦ Suitable for applications up to 16 feet wide and 14 feet high.
✦ Heavy duty construction designed for ease of installation and performance stability.
✦ Impactable: Bottom bar is designed to release upon impact with auto reset.
✦ Eliminates downtime.
✦ Sleek profile with easy installation, reduced clearance and minimal maintenance.
✦ No hinges, cables, pulleys or counterbalance springs.
✦ High-speed operation conserves energy and reduces climate fluctuations.
✦ Airwave reversing edge and thru-beam photo eyes Optional full-width window panels provide excellent visibility.
✦ Full perimeter weather seal to minimize air infiltration.
High Speed Aluminum Security Doors (TNR)
Industrial Doors, Vaughan, Toronto, Etobicoke
These heavy duty roll up doors are rigid with an aluminum slat construction that provides maximum security. In addition, slats can be insulted providing effective energy conservation & noise reduction. With opening speeds of up to 55 inches per second (depending on the application), it drastically improves traffic flow in commercial/industrial applications. Made from anodized aluminum, corrosion is prevented under any weather conditions.
✦ Ability to have the outside security of a metal sectional door, without the hinges, cables, pulleys or tension springs, with the speed of a vinyl door.
✦ Complete energy saving Insulation
✦ Aluminum outside, PVC inside and insulated polyurethane filled profile slats.
✦ Add windows!!
✦ Door speeds of up to 55′′ per second to open, up to 30′′ per second to close.

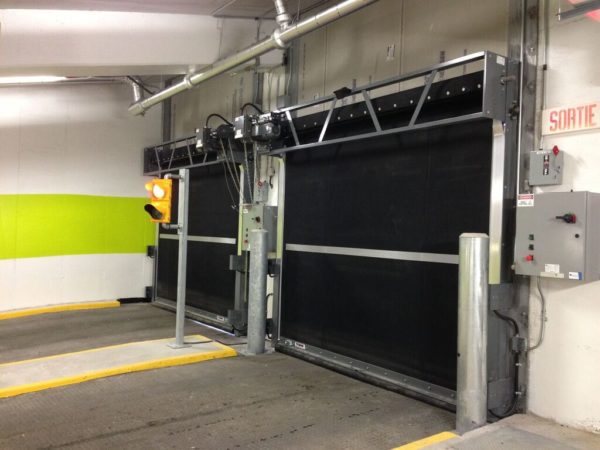

High Speed Rubber Doors (TNR)
High Speed Doors, Vaughan and Toronto
High-speed doors or fabric roll up doors are widely used across industrial applications. They are ideal for high traffic flow industries like pharmaceutical plants, parking garages and auto dealerships. Their design provides a higher operating speed becoming more energy efficient thus saving energy.
✦ This high performance rubber door is best suited for any application where headroom clearance is very limited; between 13 and 18 inches.
✦ It has a patented aluminum bottom bar with knock-away pivot arms designed to take full impacts with little or no downtime and is easily reset from the floor without the use of special tools or parts.
✦ The Model HDLH includes a high efficiency helical gearhead operator with a multi-function capacity PLC (programmable logic controller) and offers door speeds up to 30 inches per second.
Food Grade Doors
Manufacturing and food processing.
✦ Suitable for applications up to 20 feet in width or height.
✦ Self-supporting steel mounting angle.
✦ Knock-away double angle steel bottom bar for 10lb/ft with rubber loop and reversing edge.
✦ Frame-mounted thru-beam photoelectric sensor.
✦ High-Efficiency Heligear Head (HG) Operator with multi-function PLC panel.
✦ Soft Start Soft Stop using Inverter technology.
✦ Door speed of up to 60 inches per second.
✦ Counterbalance spring assembly cycle rating of 100,000.
