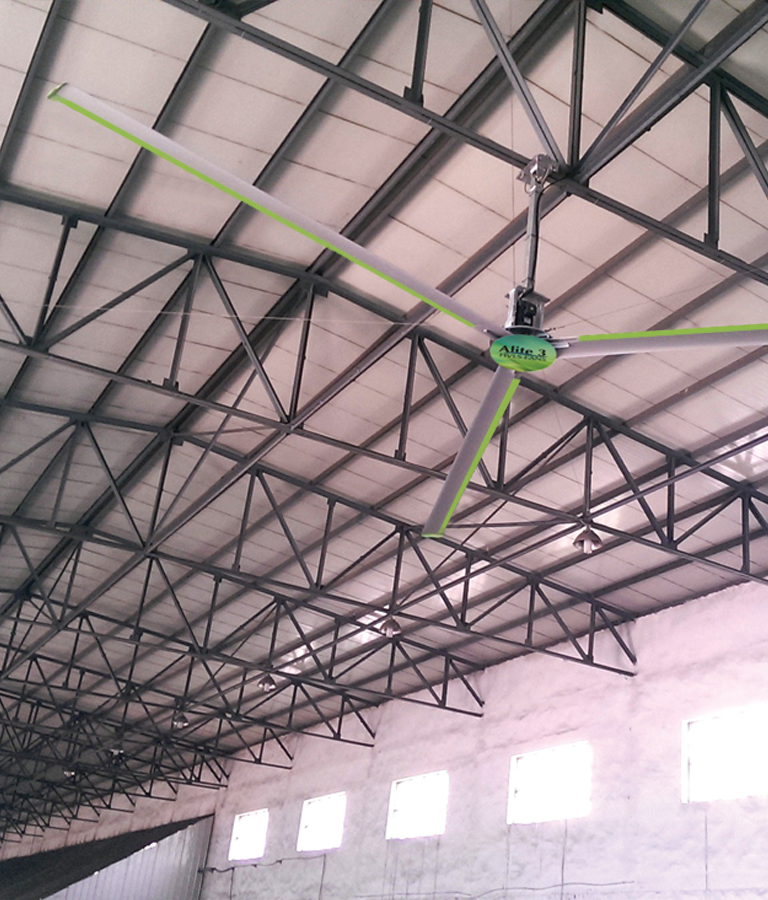

Alite 3 HVLS Fans

This simple high volume low speed fan design, ideal for industrial settings, provides necessary air movement up to 177,000 CFM. Operating on a 0.75 kW (1 Hp) gear motor, minimal power consumption is combined with impressive air volumes to create the highly efficient Alite 3.

Benefits of Alite 3 HVLS Fans

This cost-effective alternative to traditional high volume low speed fans provides:

✦ 288 CFM/Watt per 7.1 m (23′) fan
✦ 148 CFM/Watt per 4.7 m (15′) fan

Impressive efficiency is possible by this 3-bladed design that minimizes weight while providing continuous air movement throughout the area of influence.

✦ Cost Effective Alternative
✦ Nominal Power Consumption
✦ Inexpensive Operation
✦ Quiet Performance
✦ Minimal Maintenance
✦ Less Weight

Add to Wishlist
Category:

Description

Incentives on
equipment to
improve energy
efficiency



15′ & 23′

Diameter Fans

177,000

CFM (Air Movement)

3-Bladed

Unique Design

$0.04/hr

Approx. Operating Cost

Alite 3 Stats

Technical Specifications

  • Fans available in 15′ and 23′ diameters (4.7 m and 7.1 m).
  • Capable of moving nearly 177,184 CFM (83,621 l/s).
  • Operates on 1 Hp (0.75 kW).
  • Variable frequency drive provides soft start and full variable speed operation.
  • Creates a non-disruptive airflow.
Safety
Our unique blade design outperform all conventional airfoils. They accomplish this by:

  • Offering stall angles as high as 22°.
  • Always stalling gradually.
  • Minimizing span-wise pumping.
  • Eliminating tip stalling and lowering noise.
Safety
Envira-North’s safety clips prevent the hub and blade assembly from separating or coming off even in the unlikely event of a catastrophic failure of the hub or drive system.
