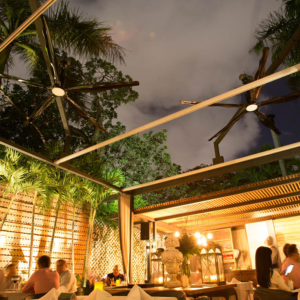

Axiom Fans stress the strength of feeling comfort. An attractive fan, completely customizable in appearance that makes the desired – achievable. A fan, designed specifically to move air with a non-disruptive, yet continually powerful flow.
Axiom Fan’s Unique Blade Design
Traditional airfoils (or blades) are linear in design and produce greater noise at a particular frequency. Using varying points on the leading edge of the blade spreads the noise or acoustic signature over a greater range of frequencies, virtually eliminating any noise.
As a fan rotates, the tip of a blade spins faster than the fixed point or ‘centre’ creating pockets of minimal air movement directly underneath the fan. The Axiom Fan blade design tackles this challenge with a varying degree angle of attack, never before seen in our industry. Ranging from 6° (tip) to 14° at its greatest point, the Axiom Fan diminishes the resistance against each blade maximizing air movement and minimizing power consumption.
Alite 3 HVLS Fans
This simple high volume low speed fan design, ideal for industrial settings, provides necessary air movement up to 177,000 CFM. Operating on a 0.75 kW (1 Hp) gear motor, minimal power consumption is combined with impressive air volumes to create the highly efficient Alite 3.
Benefits of Alite 3 HVLS Fans
This cost-effective alternative to traditional high volume low speed fans provides:
✦ 288 CFM/Watt per 7.1 m (23′) fan
✦ 148 CFM/Watt per 4.7 m (15′) fan
Impressive efficiency is possible by this 3-bladed design that minimizes weight while providing continuous air movement throughout the area of influence.✦ Cost Effective Alternative
✦ Nominal Power Consumption
✦ Inexpensive Operation✦ Quiet Performance
✦ Minimal Maintenance
✦ Less Weight
Altra-Air Sailfin HVLS Fans
Altra-Air Sailfin HVLS fans blanket a very large area with constantly moving air to create an expansive comfort zone. As a result, this large ceiling fan can create an evaporative cooling effect of 3 to 4 degrees Celsius throughout the facility.
The Sailfin Advantage
Airfoils don’t change….That is unless you work with Envira-North Systems. Since 2003, we’ve continually searched, tested and modified airfoils to maximize their efficiency – solely for the purpose of moving large volumes of air at low speeds. Here’s what we’ve done:
✦ Increased air speeds.
✦ Reduced operating costs.
✦ Decreased noise.
✦ Streamlined appearance.
